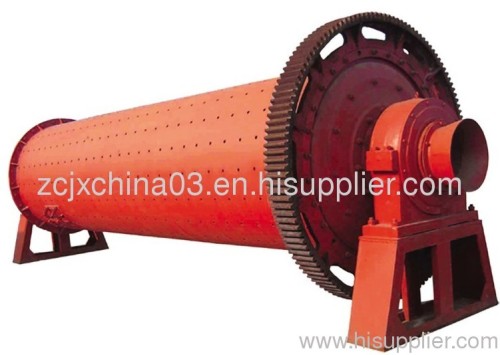

Simple structure and little noise ball mill for coal
| Price: | 1000.0~10000.0 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Henan, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Model No.:
900*1800
Production Capacity:
100sets/mouth
Delivery Date:
7~15 days after payment
Type:
Mill
Warranty:
1 year
Means of Transport:
Ocean
Packing:
Export standard
Application:
Ore
Brand Name:
ZHONGCHENG
Color:
discussion
1.Ball mill for stone
2.High grinding rate and low cost
3.Specified mill for cement
4.Lifetime techinical support
5.ISO
Simple structure and little noise ball mill for coal
1.Introduction of the ball mill for stone :
This machine changes the original grinding machine structure. Its body and ground plank are an integral whole. So when fixing, it can be located on a plane surface only once. Use double tier roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost pattern controlling one. This can improve the milling of the granule and the capacity is increased by 15%-20%.
2.Main technical parameters:
Type | Rotational Speed(r/min) | Balls Weight (t) | Material-in Size (mm) | Material-out Size(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) |
Φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
Φ900×2100 | 38 | 1.3-1.4 | ≤15 | 0.075-0.83 | 0.7-3.5 | 18.5 | 3.9 |
Φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
Φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 11.5 |
Φ1200×2800 | 32 | 3.3-3.5 | ≤25 | 0.075-0.6 | 2-6 | 30 | 13 |
Φ1200×4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.8 | 45 | 13.8 |
Φ1500×3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5 | 75 | 17 |
Φ1500×3500 | 27 | 6.75-8 | ≤25 | 0.075-0.4 | 3-7 | 75 | 17.5 |
Φ1500×4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3.5-12 | 110 | 21 |
Φ1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 115 | 24.7 |
Φ1830×3000 | 24 | 18 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Φ1800×3600 | 24 | 10.6-11.35 | ≤25 | 0.075-0.4 | 5-22 | 130 | 33.5 |
Φ1830×7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 210 | 36 |
Φ2100×3600 | 22 | 14-15.2 | ≤25 | 0.075-0.4 | 15-36 | 370 | 46.8 |
Φ2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-20 | 210 | 48.5 |
Φ2200×6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Φ2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 380 | 56 |
Φ2400×3000 | 20.6 | 15.5-16.6 | ≤25 | 0.075-0.4 | 22-44 | 245 | 59 |
Φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 380 | 65 |
Φ2700×3600 | 20.6 | 39 | ≤25 | 0.074-0.4 | 12-70 | 400 | 91.3 |
Φ2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
Φ2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
Φ3200×4500 | 18 | 65 | ≤25 | 0.075-0.4 | according to different technology | 800 | 137 |
3.Service promise:
Before sale: Guide customers to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.
After sale: Company can send technical persons for guiding to install debug and train the workers
Note: for information purposes only, any questions please contact us!
